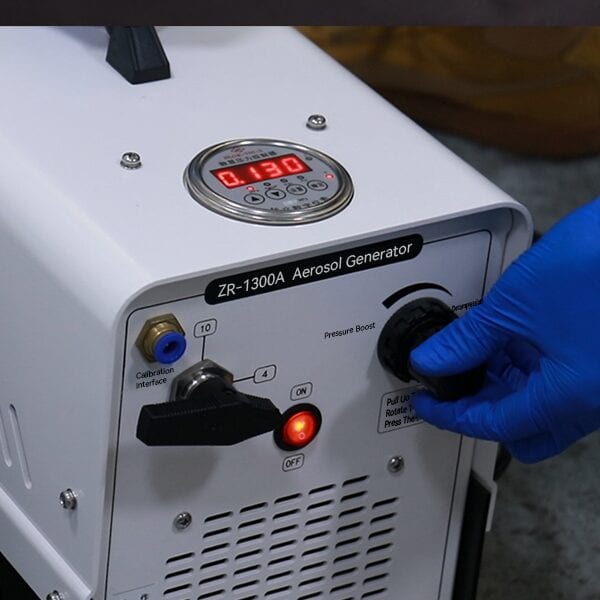

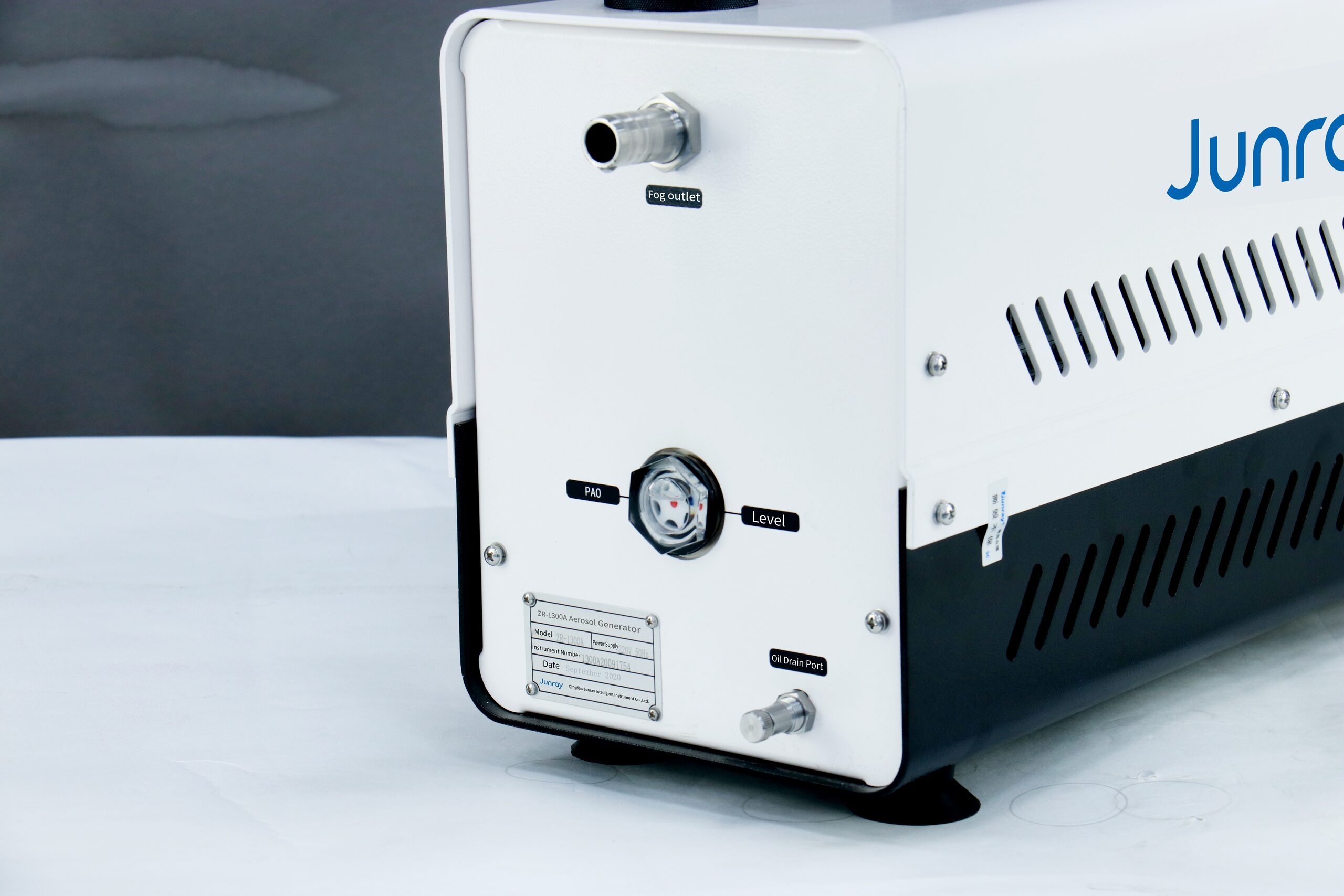

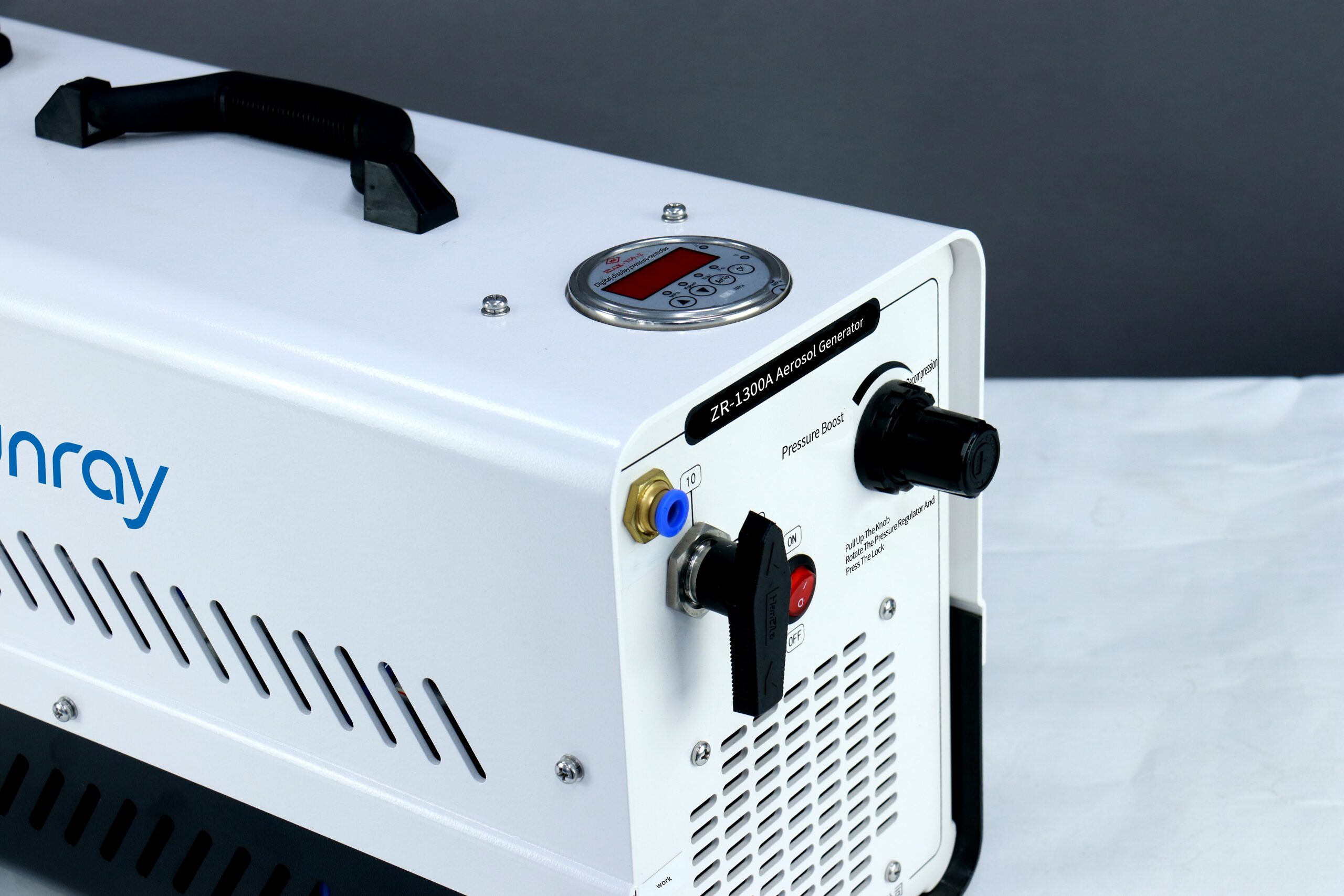

Aerosol Generator ZR-1300A
DOP aerosol generator for HEPA filter testing and cleanroom validation
The ZR-1300A Aerosol Generator is a specialised instrument for generating DOP aerosol using Laskin nozzles. The embedded adjusting valve controls the operation of 4 or 10 nozzles. At airflow rates of 1.4–56.6 m³/min the output aerosol concentration is 10–100 μg/L. Performance complies with national standards and the device is suitable for medical device testing institutes, centres of disease control, hospitals, pharmaceutical companies and HEPA filter manufacturers, for leakage testing of cleanrooms and HEPA filters.
- Unique air channel design – stable airflow and uniform particle production
- Generates multiple aerosol types: DOP, DOS, PAO etc.
- Nebulisation concentration adjustable across a wide range
- Built-in compressor
- 4–10 Laskin nozzles
Using the Aerosol Generator ZR-1300A
