Multi-point installation of microbial air samplers

Control up to 8 air samplers from a central control panel

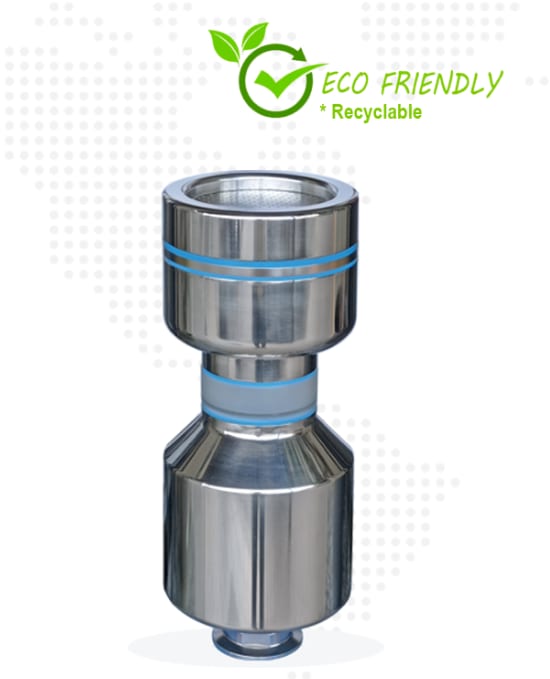

Multi-point installation air sampler, ideal for isolators, capable of flow rates of 100 or 180 lpm with validated high collection efficiency. The air sampler meets both ISO 14698 and the new standard EN 17141 for cleanrooms and associated environments. Manufactured in 316 stainless steel with a weight under 2.5 kg, with air exhaust parallel to the sampling path to reduce turbulence. 24V DC and Modbus RTU communication protocol for connection to BMS or isolator control panel with robust stainless steel Push-Pull connectors. Supplied with remote control for simplified operation and optional LED ring for status monitoring.

Up to 8 air samplers can be controlled from a central unit
Certified per ISO 14698 and EN 17141
Independently tested for physical and biological efficiency – validation report available on request
Manufactured in 316 stainless steel, weight under 2.5 kg
Continuous monitoring with 3 colour codes
Bidirectional communication and data integrity
24V DC (12V DC optional) with Modbus RTU (TCP/IP and Profibus optional)
Stainless steel Push-Pull connectors
Remote control with stop/start commands and optional LED status ring
Air exhaust parallel to the sampling path for minimised turbulence

Request a quote Ask about pricing Download brochure

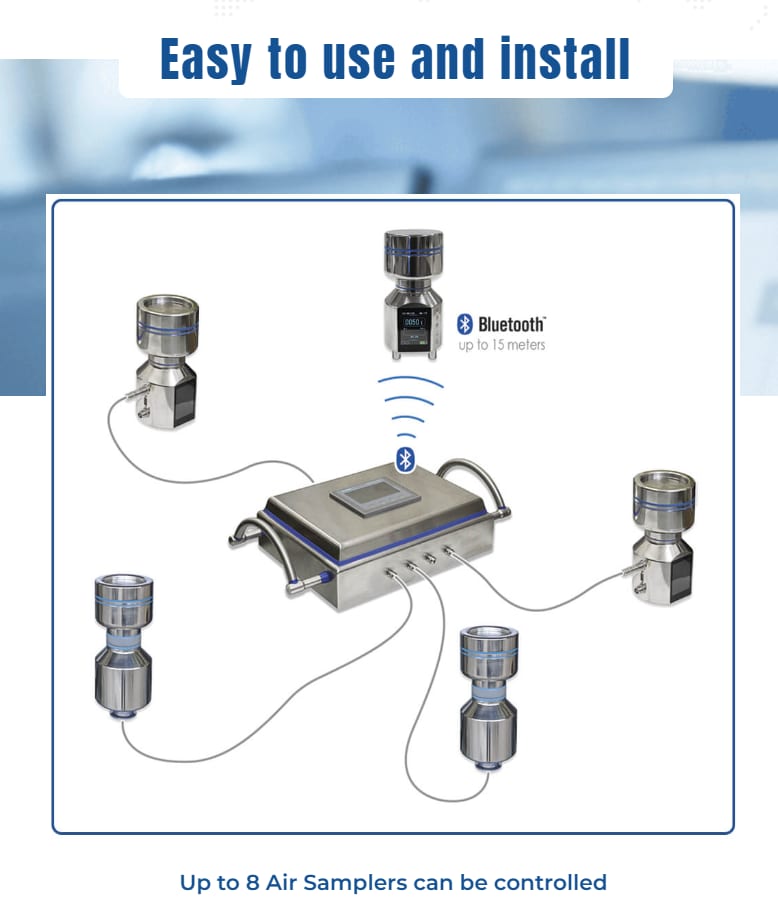

Multi-point installation – central control unit connected to up to 8 microbial air samplers via Bluetooth

Benefits and features

Central control of up to 8 units

Control and monitor up to 8 air samplers simultaneously from a central control panel via Bluetooth (up to 15 metres).

Contact plate or Petri dish

Choose between contact plates and Petri dishes depending on your requirements and sampling routines.

Screwless design

Easy cleaning and minimal contamination risk thanks to a fully screwless construction.

Parallel air exhaust

Air exhaust runs parallel to the sampling path, eliminating turbulence around the sampling point.

Continuous monitoring with colour codes

Three colour codes provide immediate visual status for each sampling point. Bidirectional communication ensures data integrity.

System integration

Modbus RTU (Modbus TCP/IP and Profibus as options), 24V DC and stainless steel Push-Pull connectors for connection to BMS or isolator control.

Product images

Click on an image to enlarge.

Technical overview

Number of samplers	Up to 8 units per control unit
Flow rate	100 L/min (180 L/min optional)
Material	Electropolished 316L stainless steel
Dimensions (OD × H)	⌀100 × 230 mm per unit
Weight	Under 2.5 kg per unit
Power supply	24V DC (12V DC optional)
Communication	Modbus RTU (TCP/IP and Profibus optional), Bluetooth
Connectors	Stainless steel Push-Pull
Options	360° LED status ring, remote control
Standards	ISO 14698, EN 17141, CE

ISO 14698EN 17141CE

Applications

Simultaneous sampling in isolators with multiple sampling points
Continuous microbial monitoring in Grade A/B zones
Pharmaceutical production with multiple isolators or RABS systems
Aseptic production with multi-point monitoring requirements
Integration with existing BMS or isolator control systems
Facilities with requirements for centralised documentation and traceability

Documentation & compliance

Download supporting documents covering audit trail, regulatory compliance and data integrity.

Audit trail

Complete event logging for traceability per 21 CFR Part 11.

Download PDF

Compliance

Regulatory compliance overview with relevant standards and certifications.

Download PDF

Data integrity

ALCOA+ data integrity principles and how they are implemented in the instrument.

Download PDF

Recommended instruments

These instruments are suitable for multi-point installation.

Microbial Air Sampler ZR-2052

Portable microbial air sampler with touchscreen and audit trail

The ZR-2052 Microbial Air Sampler is an efficient portable active air sampler designed for cleanroom and aseptic environments. The sampler is a single-stage multi-aperture impactor through which air is drawn at a constant flow rate. Airborne microbes are accelerated as the air passes through the aperture and impact the surface of the medium in the petri dish at a speed of 10.8 m/s, capturing particles larger than 1 μm in diameter. The sampler is widely used in pharmaceutical, food and drug, disease control, health and epidemic prevention, hospital and other related industries.

Other installation types

Fixed Installation

Reliable microbial monitoring in isolators and cleanrooms

The fixed air sampler for those who require reliable microbial monitoring in isolators and cleanrooms. With 100 lpm and validated high collection efficiency, it delivers fast and accurate results – every time. Robust construction combined with validated performance – a dependable choice for all critical cleanroom environments.

Learn more

Mobile Installation

High collection efficiency with full flexibility in the field

The portable air sampler combines high collection efficiency with full flexibility in the field. With 100 lpm and validated performance per ISO 14698 and EN 17141, you get fast, safe and reproducible sampling – regardless of environment. Mobility, precision and validated safety – perfect for critical environments where reliable sampling is a must.

Learn more
