Fixed air sampling with maximum safety

Reliable microbial monitoring in isolators and cleanrooms

The fixed air sampler for those who require reliable microbial monitoring in isolators and cleanrooms. With 100 lpm and validated high collection efficiency, it delivers fast and accurate results – every time. Robust construction combined with validated performance – a dependable choice for all critical cleanroom environments.

Certified per ISO 14698 and EN 17141
Independently tested for physical and biological efficiency
316 stainless steel, screwless design and weight under 2.5 kg
Minimal turbulence thanks to parallel air exhaust
Easy integration via Modbus, 24V/12V DC and robust Push-Pull connectors
Remote control and selectable LED status ring for smooth operation
Compatible with both contact plates and Petri dishes

Request a quote Ask about pricing Download brochure

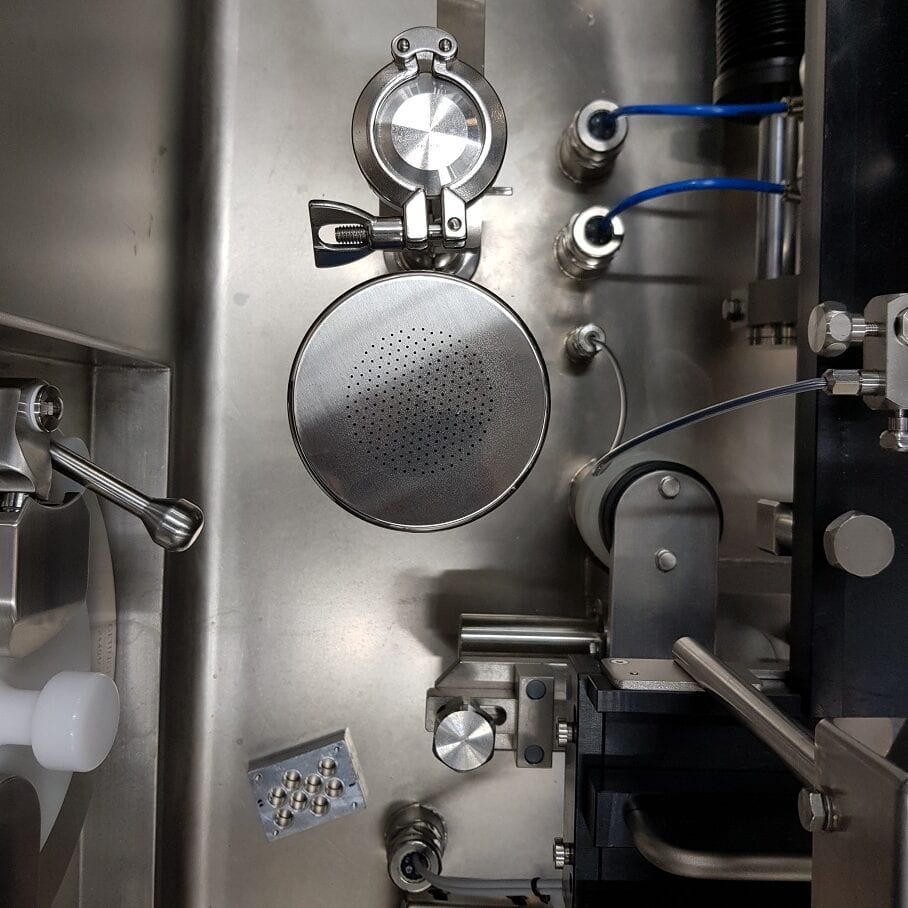

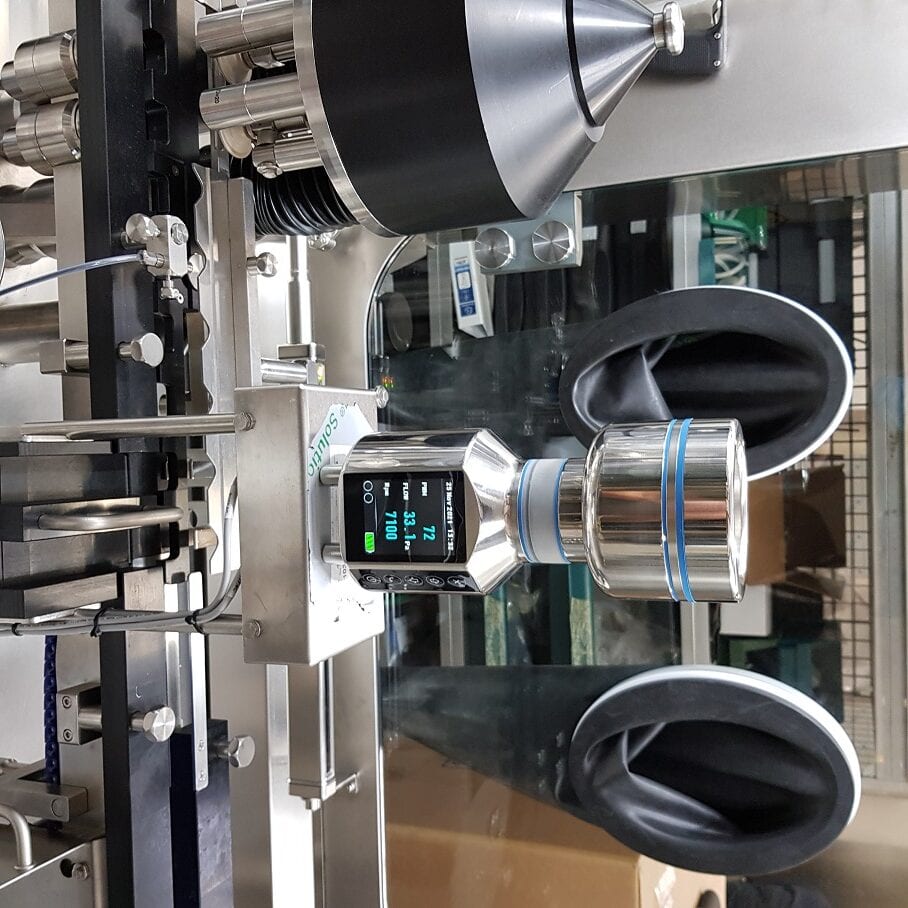

Fixed-mount microbial air sampler in stainless steel installed in isolator

Benefits and features

Contact plate or Petri dish

Choose between contact plates and Petri dishes depending on your requirements and sampling routines.

Screwless design

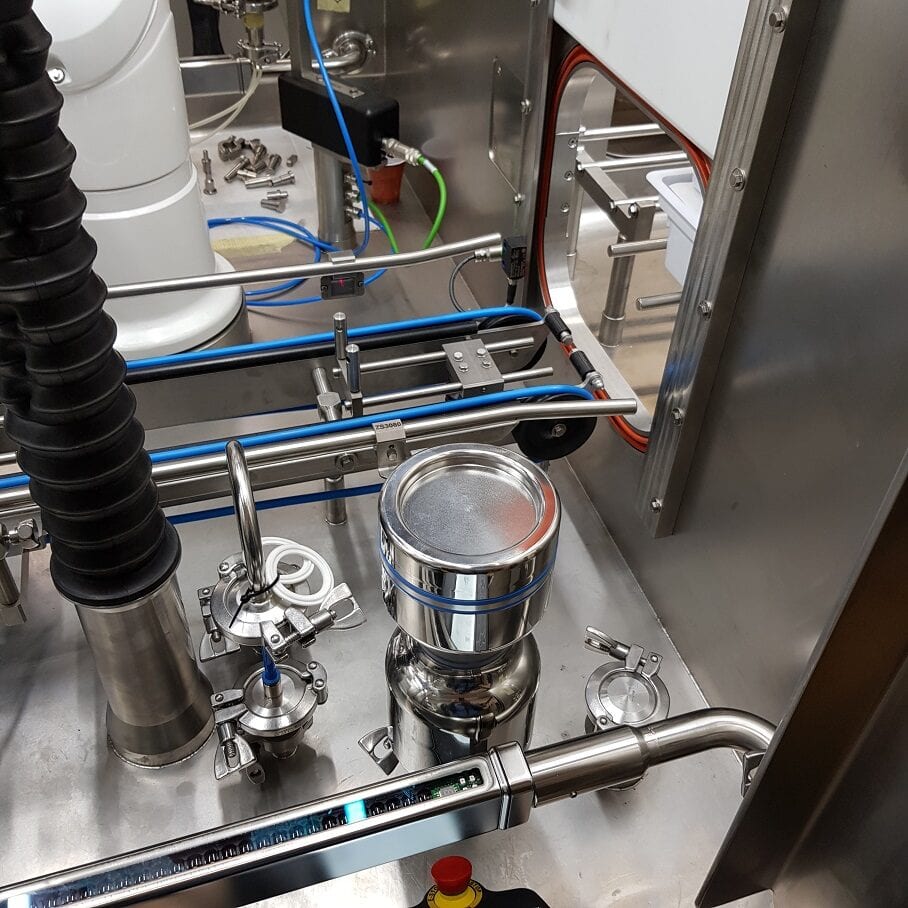

Easy cleaning and minimal contamination risk thanks to a fully screwless construction.

Parallel air exhaust

Air exhaust runs parallel to the sampling path, eliminating turbulence around the sampling point.

Compact and lightweight

Weighing under 2.5 kg with compact dimensions, it fits in all installation spaces, including tight isolators.

Easy system integration

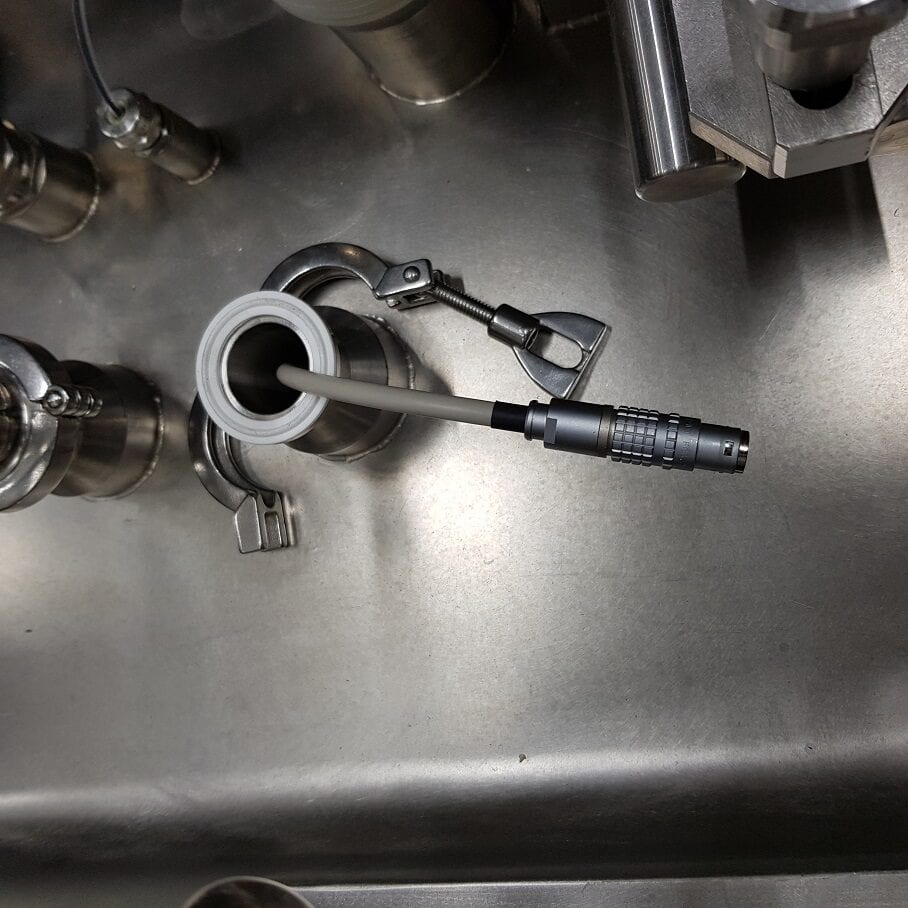

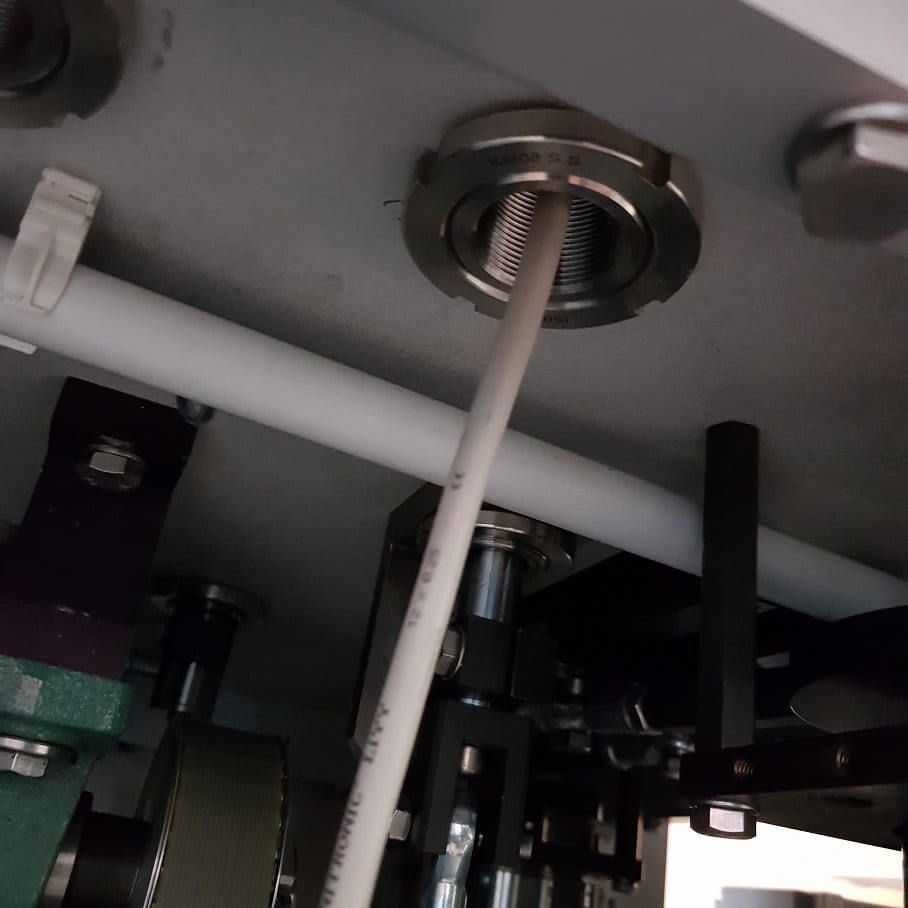

Modbus RTU (Modbus TCP/IP and Profibus as options), 24V DC and robust stainless steel Push-Pull connectors for connection to BMS or isolator control panel.

Remote control and LED status

Included remote control for start/stop and optional 360° LED ring showing instrument status in real time.

Product images

Click on an image to enlarge.

Technical overview

Flow rate	100 L/min

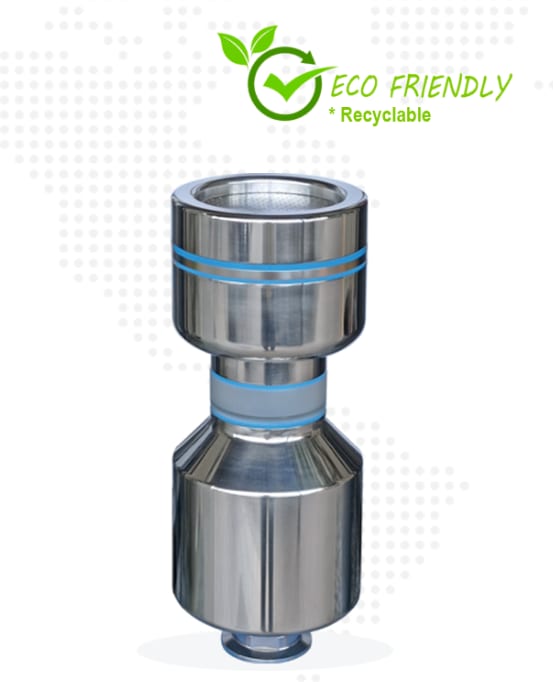

Material	Electropolished 316L stainless steel
Dimensions (OD × H)	⌀100 × 230 mm
Weight	2.5 kg
Power supply	100–240 V / 50–60 Hz
Communication	Modbus RTU (TCP/IP and Profibus optional)
Control	24V DC, Push-Pull connectors, remote control
Standards	ISO 14698, EN 17141, CE

ISO 14698EN 17141CE

Applications

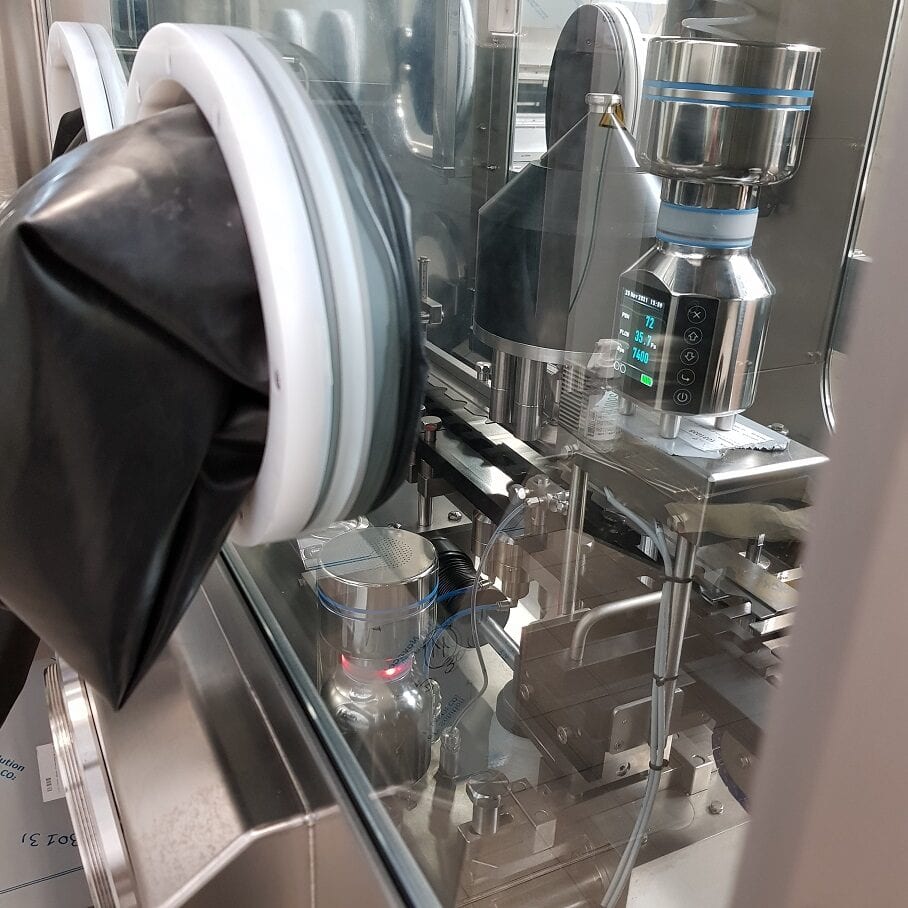

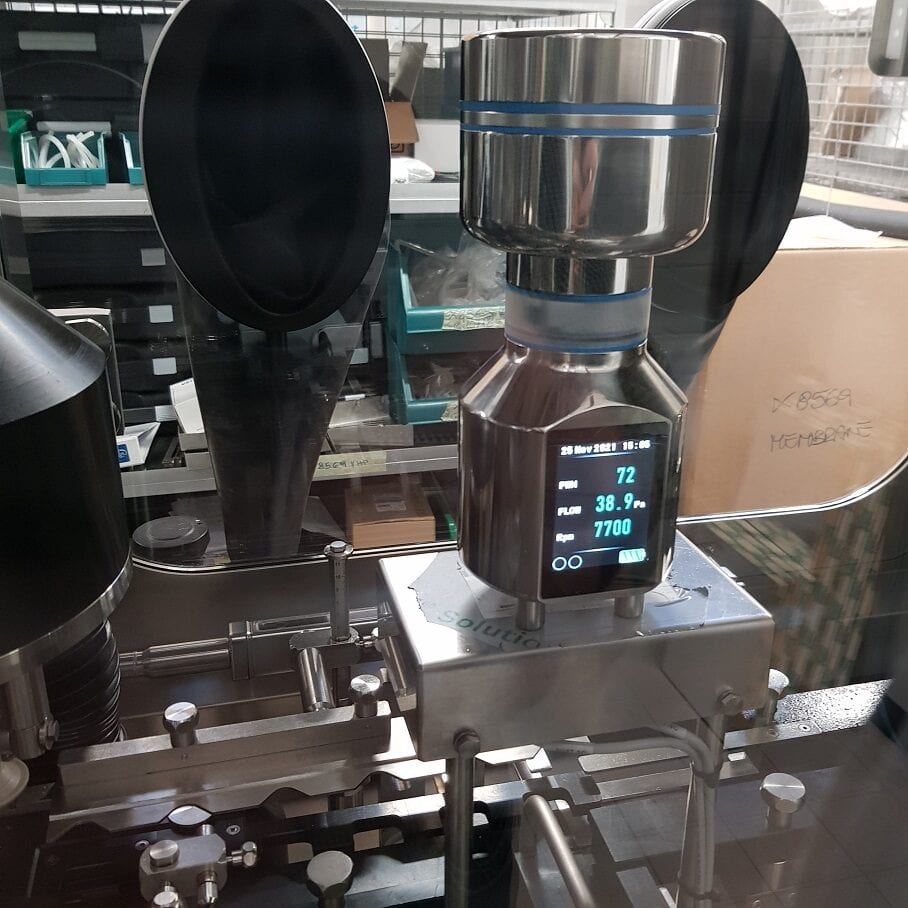

Continuous microbial monitoring in isolators
Fixed-mount sampling in Grade A/B cleanrooms
Aseptic production and sterile environments
RABS systems
Pharmaceutical production with GMP requirements
Integration with BMS or isolator control systems

Documentation & compliance

Download supporting documents covering audit trail, regulatory compliance and data integrity.

Audit trail

Complete event logging for traceability per 21 CFR Part 11.

Download PDF

Compliance

Regulatory compliance overview with relevant standards and certifications.

Download PDF

Data integrity

ALCOA+ data integrity principles and how they are implemented in the instrument.

Download PDF

Available models

Available in 3 variants to suit different requirements and workflows.

FS100-S-P – Petri Dish

Type	Petri dish
Flow rate	100 L/min
Material	Electropolished 316L stainless steel
Dimensions (OD × H)	⌀100 × 230 mm
Weight	2.5 kg
Power supply	100–240 V / 50–60 Hz
Part number	FS100-S-P

FS100-S-C – Contact Plate

Type	Contact plate
Flow rate	100 L/min
Material	Electropolished 316L stainless steel
Dimensions (OD × H)	⌀100 × 230 mm
Weight	2.5 kg
Power supply	100–240 V / 50–60 Hz
Part number	FS100-S-C

FS100-R-S-P – Petri Dish with 360° LED

Type	Petri dish
Flow rate	100 L/min
Extra	360° LED status ring
Material	Electropolished 316L stainless steel
Dimensions (OD × H)	⌀100 × 230 mm
Weight	2.5 kg
Power supply	100–240 V / 50–60 Hz
Part number	FS100-R-S-P

Recommended instruments

These instruments are suitable for fixed installation.

Microbial Air Sampler ZR-2052

Portable microbial air sampler with touchscreen and audit trail

The ZR-2052 Microbial Air Sampler is an efficient portable active air sampler designed for cleanroom and aseptic environments. The sampler is a single-stage multi-aperture impactor through which air is drawn at a constant flow rate. Airborne microbes are accelerated as the air passes through the aperture and impact the surface of the medium in the petri dish at a speed of 10.8 m/s, capturing particles larger than 1 μm in diameter. The sampler is widely used in pharmaceutical, food and drug, disease control, health and epidemic prevention, hospital and other related industries.

Other installation types

Mobile Installation

High collection efficiency with full flexibility in the field

The portable air sampler combines high collection efficiency with full flexibility in the field. With 100 lpm and validated performance per ISO 14698 and EN 17141, you get fast, safe and reproducible sampling – regardless of environment. Mobility, precision and validated safety – perfect for critical environments where reliable sampling is a must.

Learn more

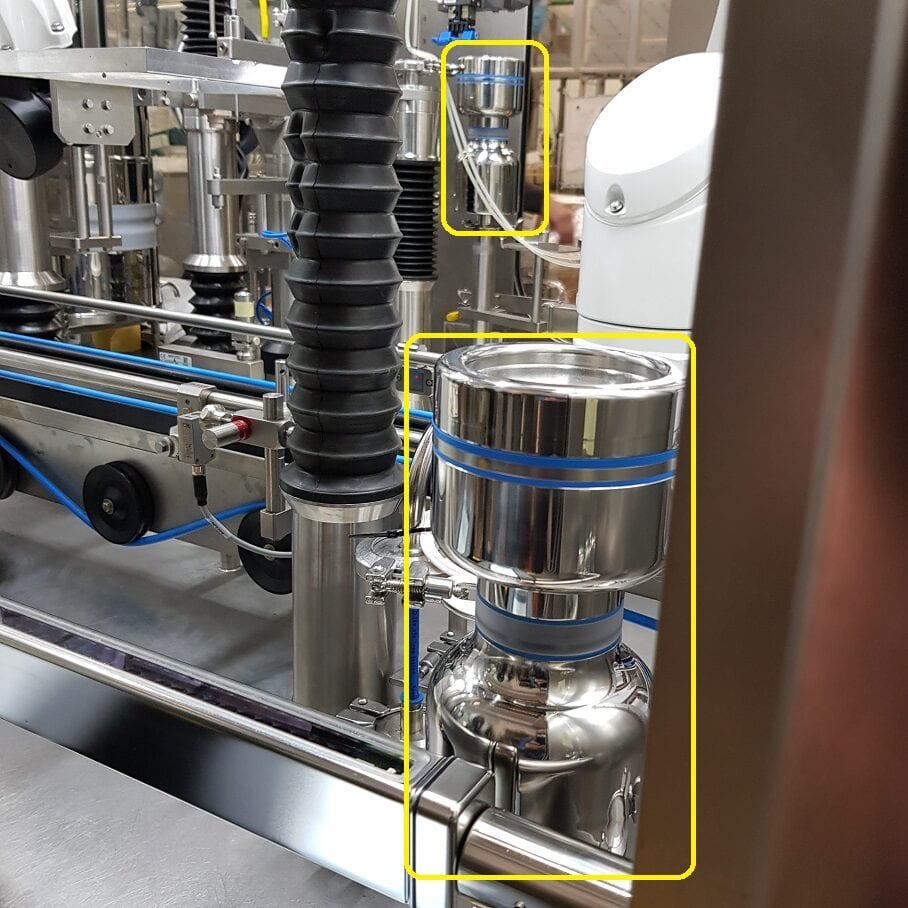

Multi-Point Installation

Control up to 8 air samplers from a central control panel

Multi-point installation air sampler, ideal for isolators, capable of flow rates of 100 or 180 lpm with validated high collection efficiency. The air sampler meets both ISO 14698 and the new standard EN 17141 for cleanrooms and associated environments. Manufactured in 316 stainless steel with a weight under 2.5 kg, with air exhaust parallel to the sampling path to reduce turbulence. 24V DC and Modbus RTU communication protocol for connection to BMS or isolator control panel with robust stainless steel Push-Pull connectors. Supplied with remote control for simplified operation and optional LED ring for status monitoring.

Learn more
